XT PB-225/3100 & 4100
XT brand press brakes are not only suitable for the industry of heavy-duty
machinery,locomotive,aviation,shipbuilding,but also satisfied the tube&lamp pole production via using some assistant equipment of uncoiling,flattening,closing up and welding.
_________________________________________________
•Multiful Core Technologies
•Safety Standard is a must
•High Quality Parts
•Controller controls and adjusts Y-axis and X-axis
•Servo drive and control positioning of X-axis and Y-axis
•Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm
•Front supporter bracket
•Germany Bosch Rexroth hydraulic valve block
•Germany EMB oil tube connector
•Germany Siemens main motor

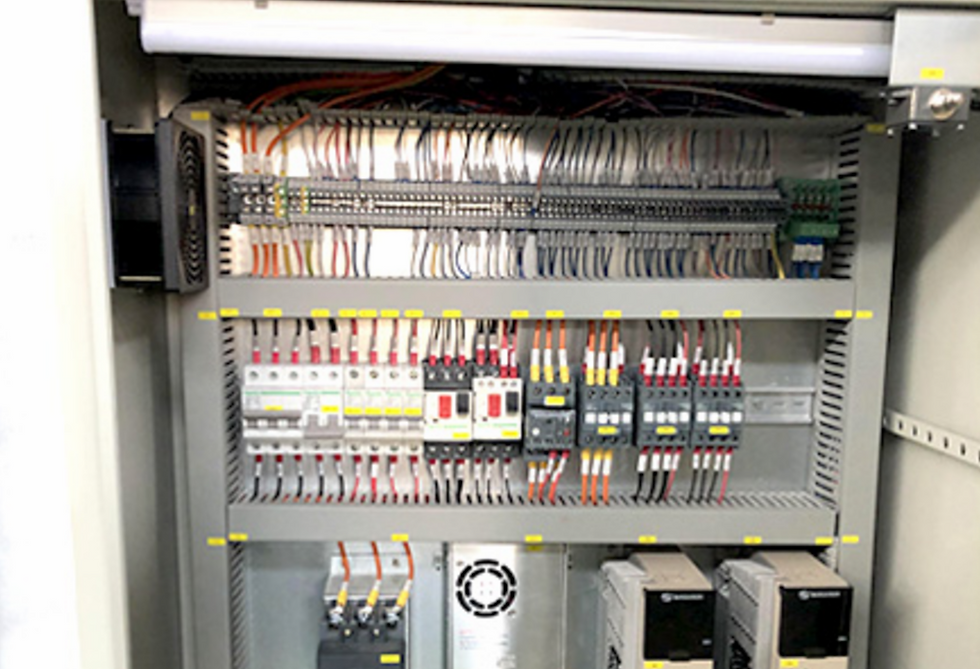

•France Schneider electrics
•Hydraulic & electrical overload Protection top and bottom dies
(86 °, R0.6mm, material: 42CrMo HRC ±47 °)
•Ajdust quality stop finger
•Increase axis support 4+1 axis (R axis )
_________________________________________________
XTPB-225/3100
X Axis
• Accuracy 0.10mm
• Stroke 500mm
• Speed 400mm/s
• Power 1KW
R Axis
• Accuracy 0.10mm
• Stroke 200mm
• Speed 200mm/s
• Power 1KW
• Lenght 3980mm
• Width 1960mm
• Height 2650mm
_________________________________________________
XTPB-225/4100
X Axis
• Accuracy 0.10mm
• Stroke 500mm
• Speed 400mm/s
• Power 1KW
R Axis
• Accuracy 0.10mm
• Stroke 200mm
• Speed 200mm/s
• Power 1KW
• Lenght 4980mm
• Width 1960mm
• Height 2650mm
In your quote we would need the material and thickness you're wanting to bend.
